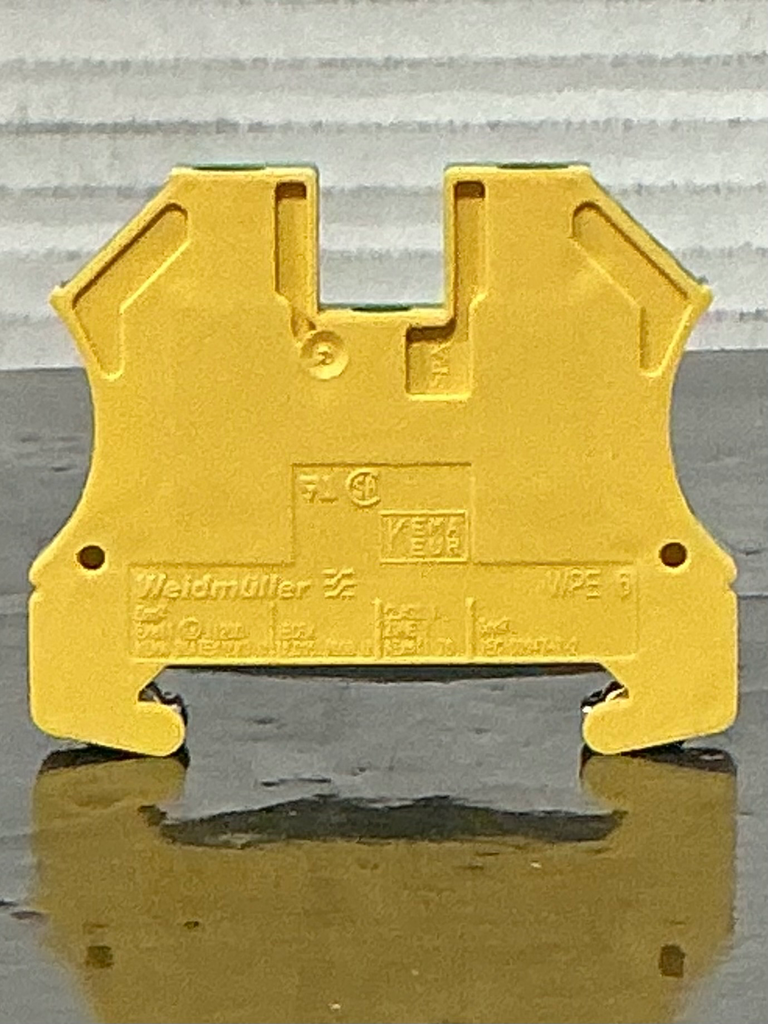

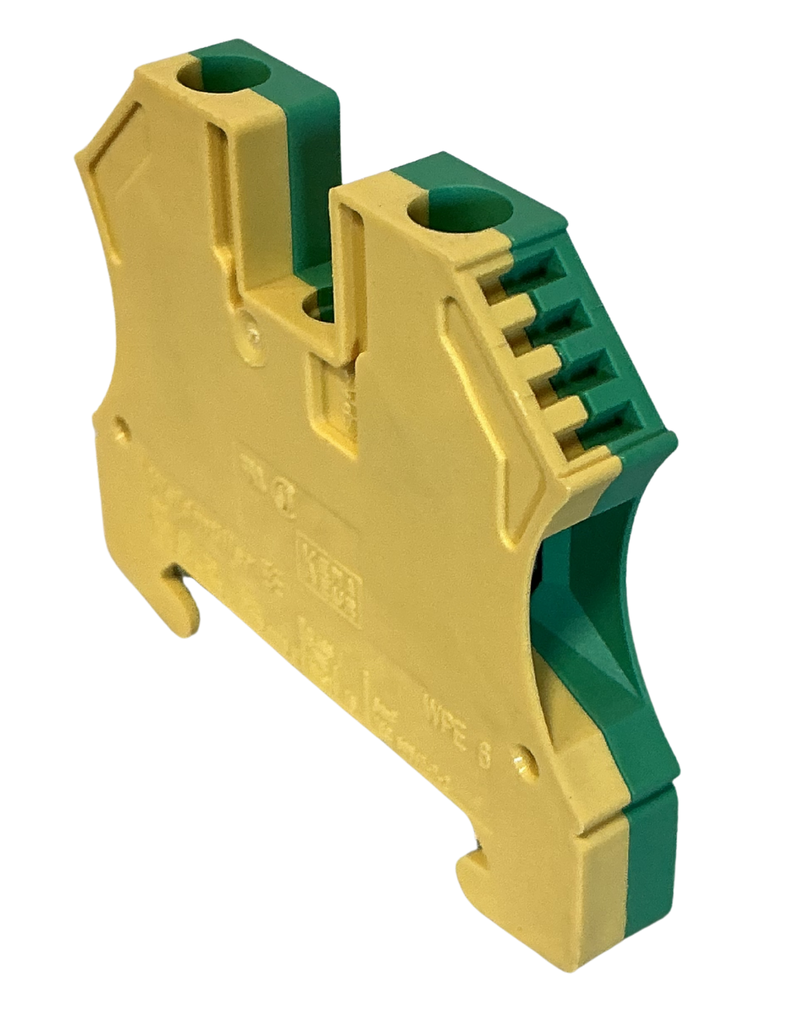

1010200000(WPE6)
Weidmuller 1010200000 WPE6 Terminal Block Ground, 6 mm, AWG 20 To 8
This content will be shared across all product pages.
Specifications
| part_number | 1010200000 |
| model | WPE6 |
| manufacturer | Weidmüller |
| product_type | Terminal Block |
| connection_type | Screw Connection |
| rated_current | 41 A |
| rated_voltage | 800 V |
| number_of_positions | 1 |
| wire_size_solid_min | 24 AWG |
| wire_size_solid_max | 8 AWG |
| wire_size_stranded_min | 24 AWG |
| wire_size_stranded_max | 10 AWG |
| mounting_type | DIN Rail |
| color | Grey |
| width_mm | 8.1 |
| height_mm | 47 |
| depth_mm | 42 |
| material | Polyamide 66 |
| flammability_rating | UL94-V0 |
| operating_temperature_min | -50°C |
| operating_temperature_max | 120°C |
| country_of_origin | Germany |
