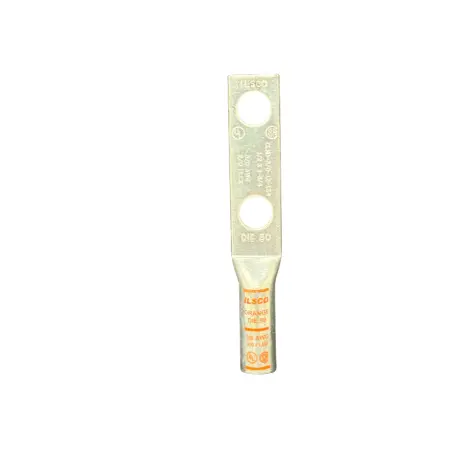

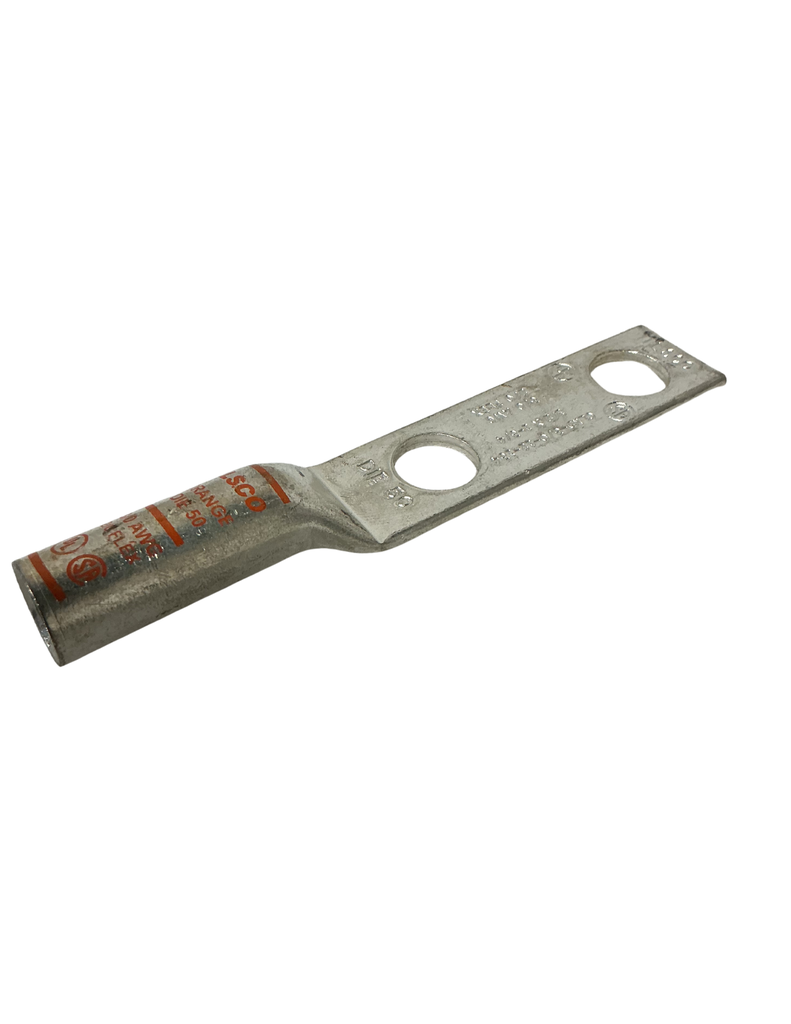

CLND-3/0-12-134
Terminal Lug, (2)1/2in. Studs, 3/0-#2, Non-Insulated, Dual Stud, Copper, Long Barrel, w/o Sight Window
This content will be shared across all product pages.
Specifications
| part_number | CLND-3/0-12-134 |
| product_type | Electrical Lug |
| conductor_size | 3/0 AWG |
| stud_hole_size | 1/2 inch |
| terminal_length | 1.34 inches |
| material | Copper |
| plating | Tin-plated |
| number_of_holes | 1 |
| barrel_type | Long Barrel |
| wire_entry_type | Standard |
| voltage_rating | 600V |
| operating_temperature | 90°C |
| application | Power Cable Termination |
| compliance | UL Listed |
| manufacturer | Generic |
| color | Silver |
| insulation | Uninsulated |
| rohs_compliant | Yes |
| mounting_type | Bolt |
| description | Copper compression lug for 3/0 AWG wire with 1/2 inch stud hole and 1.34 inch length |
