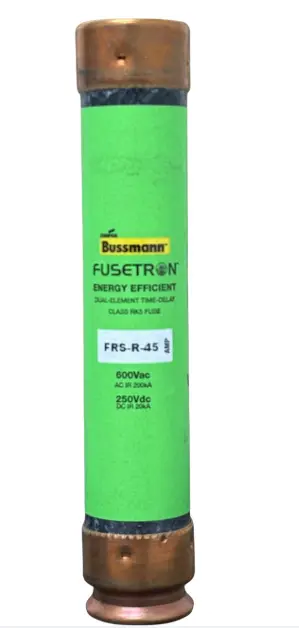

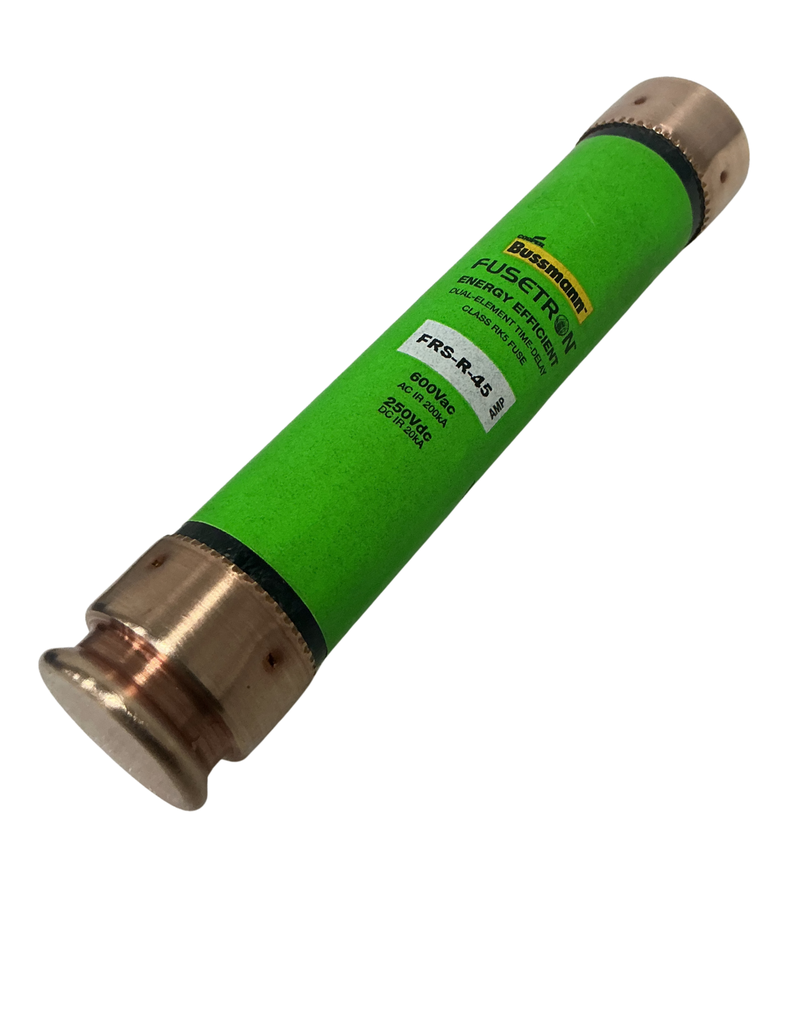

FRS-R-45
Eaton Bussmann series FRS-R fuse, 45 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc|200 kAIC at 600 V, Standard, 600 V, 250 Vdc
This content will be shared across all product pages.
Specifications
| part_number | FRS-R-45 |
| product_type | Fuse |
| series | FRS-R |
| fuse_class | RK5 |
| voltage_rating_ac | 600V |
| voltage_rating_dc | 300V |
| amperage_rating | 45A |
| interrupting_rating_ac | 200kA |
| interrupting_rating_dc | 20kA |
| fuse_type | Dual-Element, Time-Delay |
| body_style | Cylindrical |
| body_material | Melamine |
| end_caps | Tin-plated copper |
| dimensions_length | 5.88 inches |
| dimensions_diameter | 0.81 inches |
| compliance | UL Listed, CSA Certified |
| application | Motor protection, Branch circuits, Lighting, Power distribution |
| Brand | Eaton |
| operating_temperature_range | -40°C to +85°C |
| country_of_origin | USA |
