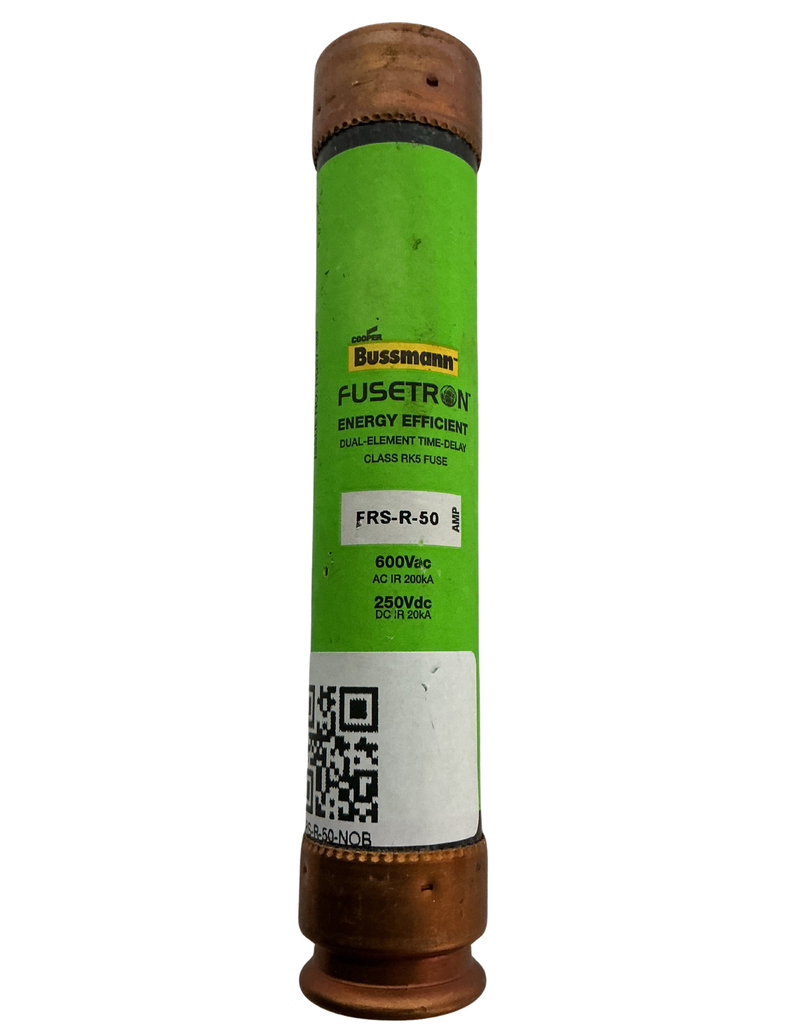

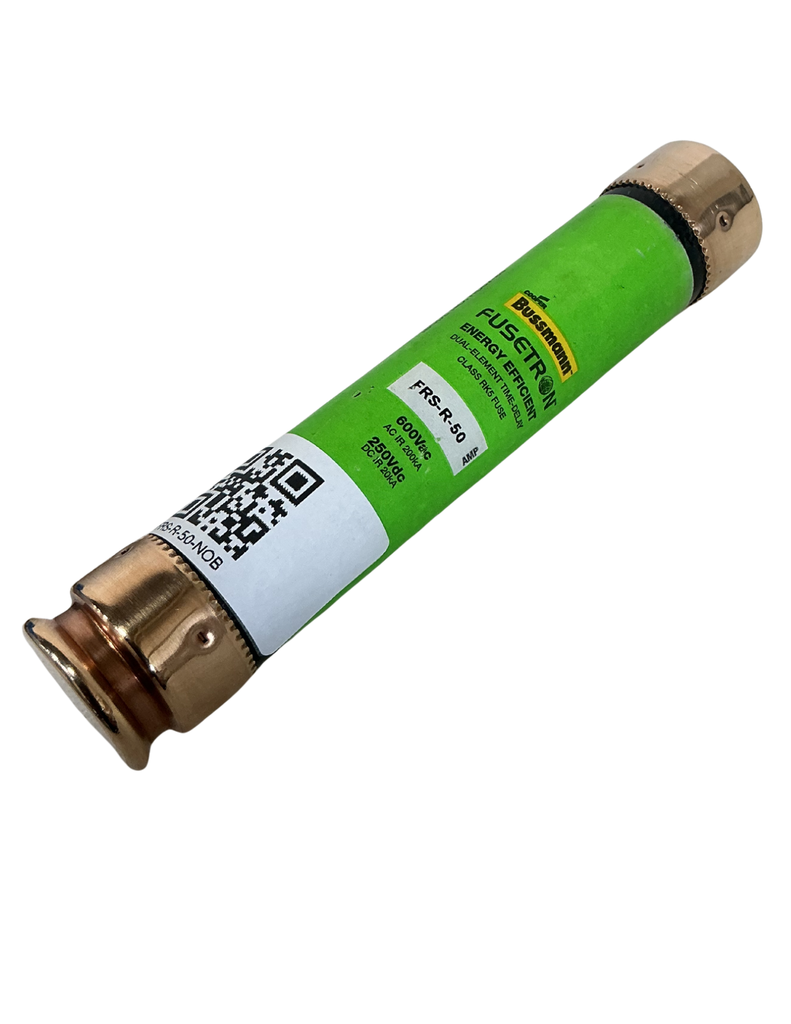

FRS-R-50-NOB
Eaton Bussmann series FRS-R fuse, 50 A, Dual, Class RK5, Non-indicating, Ferrule end x ferrule end, 10 sec at 500%, 20 kAIC at 250 Vdc|200 kAIC at 600 V, Standard, 600 V, 250 Vdc
This content will be shared across all product pages.
Specifications
| part_number | FRS-R-50-NOB |
| product_name | Fuse |
| fuse_type | Time-Delay |
| series | FRS-R |
| amp_rating | 50 Amps |
| voltage_rating_ac | 600 Volts AC |
| voltage_rating_dc | 300 Volts DC |
| interrupting_rating | 200kA AC, 20kA DC |
| fuse_class | RK5 |
| dimensions | 5.88 in length x 1.06 in diameter |
| mounting | Ferrule End X Ferrule End |
| body_material | Fiberglass |
| indicating | No |
| compliance | UL Listed, CSA Certified |
| application | Motor Circuits, Power Distribution |
| manufacturer | Littelfuse |
| replacement_for | Bussmann FRN-R-50 |
| operating_temperature | -55°C to +60°C |
| country_of_origin | USA |
| environmental_conditions | Indoor |
| weight | 0.30 lbs |
| sku | FRS-R-50-NOB |
