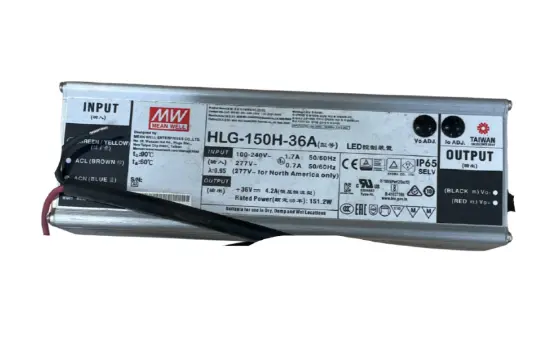

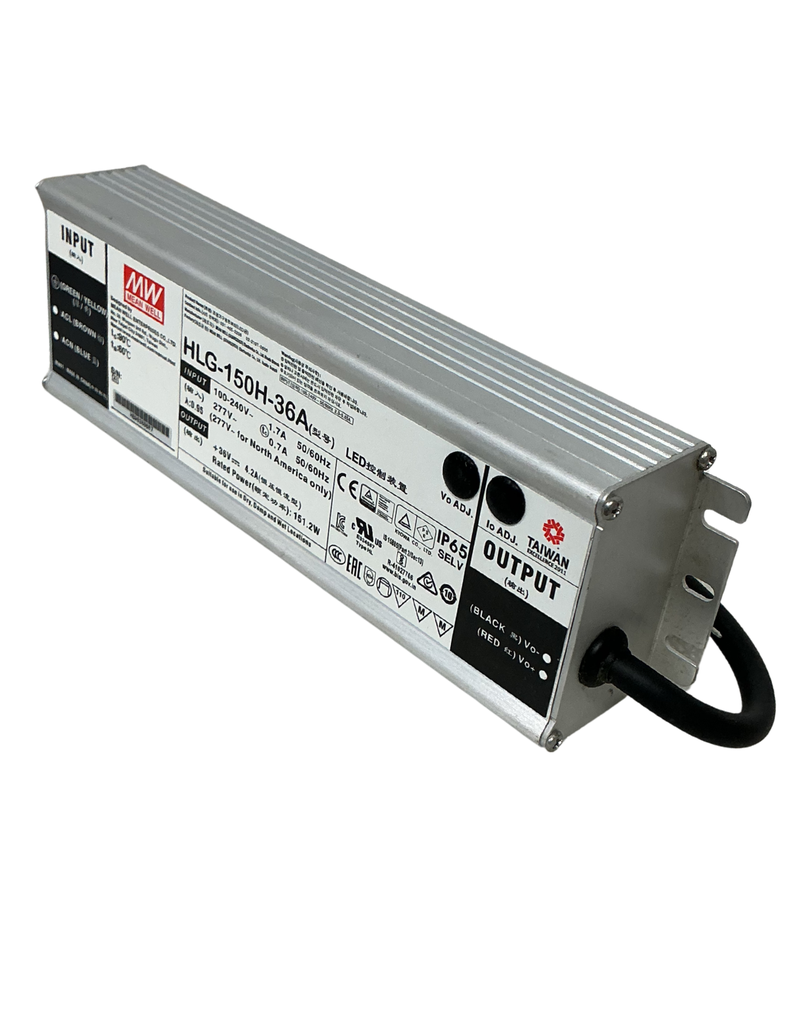

HLG-150H-36A
36Vdc 4.2A LED Driver, IP65, PFC Harsh Environment, Metal Case 36V 4.2A
Specifications
| part_number | HLG-150H-36A |
| manufacturer | Mean Well |
| product_type | LED Driver |
| input_voltage_range | 90-305VAC |
| output_voltage | 36VDC |
| output_current | 4.2A |
| output_power | 151.2W |
| output_type | Constant Voltage |
| dimming_function | Adjustable via potentiometer |
| efficiency | 0.93 |
| protection_features | Short circuit, Over current, Over voltage, Over temperature |
| operating_temperature | -40°C to +80°C |
| ip_rating | IP65 |
| dimensions | 228mm x 68mm x 38.8mm |
| certifications | CE, UL, ENEC, CB |
| application | Outdoor/Indoor LED Lighting |
| connector_type | Wire leads |
| cooling_method | Convection cooled |
